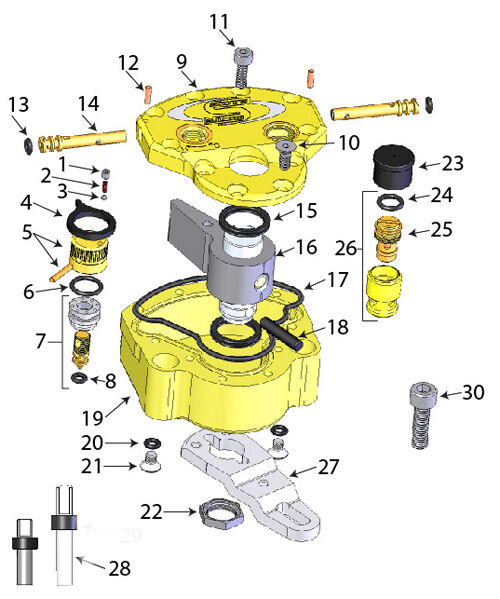

#23 Scotts Part -4024-01 - Black cap for High Speed Valve

  • #1 1502-04 Set Screw
  • #2 4017-01 Spring
  • #3 0884-04 Steel Ball
  • #4 4030-01 Pointer
  • #5 4016-01 Brass Knob with Pin
  • #6 0338-57 O-Ring ( Knob to Base Valve)
  • #7 4033-01 Base Valve Dirt ( Needle, Seat, O-Ring)
  • #7 4033-01 Base Valve Road ( Needle, Seat, O-Ring)
  • #8 0338-14 O-Ring ( Needle to Base Valve )
  • #9 4001-01 Top housing Cover ( Bare - Off-Road)
  • #9 4001-01 Top housing Cover ( Bare - Road Bike)
  • #10 0382-04 Screw ( Countersunk Head )
  • #11 1046-10 Screw (Cap Head )
  • #12 4006-01 Retainer Pin for SWeep Controls
  • #13 0338-58 O-Ring for Sweep Controls
  • #14 4035-01 Sweep Control Assembly ( Off-Road)
  • #14 4035-02 Sweep Control Assembly ( Dirt )
  • #15 1027-02 Main Seals - sold as a pair
  • #16 4028-01 Main Wing Assembly
  • #17 0338-55 O-Ring ( Top Cap to Body )
  • #18 4009-01 Shear Pin
  • #19 4002-01 main Body
  • #20 0338-56 O-Ring ( Bottom Bleed Hole )
  • #21 0382-05 Screw ( Bottom Bleed Hole )
  • #22 4010-01 Nut
  • #23 4024-01 Black Cap ( for High Speed Valve )
  • #24 0338-59 O-Ring for High Speed Valve
  • #25 4005-01 High Speed Valve ( no outer housing )
  • #26 4005-02 High Speed Valve Assembly ( Complete )
SKU SCO-PART-4024-01
Brand Scotts Performance Products
Unit Of Measure 1
