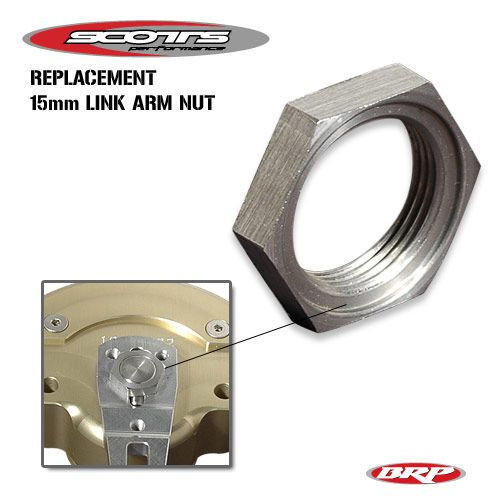

#22 Scotts Part -4010-01 - 15mm Mounting Nut (Connects Link Arm to Main Shaft)

The Scotts replacement link arm nut is the 15mm nut designed to hold the link arm on the stabilizer unit. The nut features a relief on the side that mates with the link arm and is designed to go on one way.

Shock Treatment is an authorized Scotts Stabilizer Dealer and Service center with an extensive knowledge of stabilizer mounting applications. We have a complete line of stabilizer mounting applications and replacement parts. When it comes to service we offer complete service on all Scotts stabilizers.

SPECIAL NOTES:
When installing the link arm nut we recommend using a little red loctite to prevent the nut from coming loose. DONT OVER TIGHTEN NUT it only has 3-4 threads that can be stripped if you tighten it to much.

  • #1 1502-04 Set Screw
  • #2 4017-01 Spring
  • #3 0884-04 Steel Ball
  • #4 4030-01 Pointer
  • #5 4016-01 Brass Knob with Pin
  • #6 0338-57 O-Ring ( Knob to Base Valve)
  • #7 4033-01 Base Valve Dirt ( Needle, Seat, O-Ring)
  • #7 4033-01 Base Valve Road ( Needle, Seat, O-Ring)
  • #8 0338-14 O-Ring ( Needle to Base Valve )
  • #9 4001-01 Top housing Cover ( Bare - Off-Road)
  • #9 4001-01 Top housing Cover ( Bare - Road Bike)
  • #10 0382-04 Screw ( Countersunk Head )
  • #11 1046-10 Screw (Cap Head )
  • #12 4006-01 Retainer Pin for SWeep Controls
  • #13 0338-58 O-Ring for Sweep Controls
  • #14 4035-01 Sweep Control Assembly ( Off-Road)
  • #14 4035-02 Sweep Control Assembly ( Dirt )
  • #15 1027-02 Main Seals - sold as a pair
  • #16 4028-01 Main Wing Assembly
  • #17 0338-55 O-Ring ( Top Cap to Body )
  • #18 4009-01 Shear Pin
  • #19 4002-01 main Body
  • #20 0338-56 O-Ring ( Bottom Bleed Hole )
  • #21 0382-05 Screw ( Bottom Bleed Hole )
  • #22 4010-01 Nut
  • #23 4024-01 Black Cap ( for High Speed Valve )
  • #24 0338-59 O-Ring for High Speed Valve
  • #25 4005-01 High Speed Valve ( no outer housing )
  • #26 4005-02 High Speed Valve Assembly ( Complete )
SKU SCO-PART-4010-01
Brand Scotts Performance Products
Unit Of Measure 1
