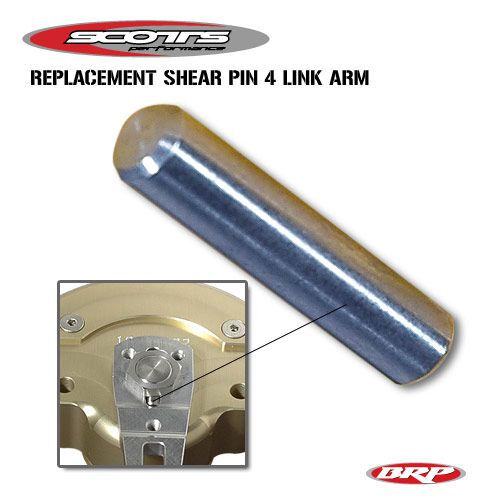

#18 Scotts Part -4009-01 - Shear Pin for Link Arm

The Scotts replacement shear pin is a critical part of the stabilizer. The shear pin is a case hardened pin designed to break in the event the stabilizer is forced past its natural travel, thus preventing damage to the stabilizer unit. We recommend replacement of the shear pin if you find there is a little play between the shear pin and link arm.

Shock Treatment is an authorized Scotts Stabilizer Dealer and Service center with an extensive knowledge of stabilizer mounting applications. We have a complete line of stabilizer mounting applications and replacement parts. When it comes to service we offer complete service on all Scotts stabilizers.

SPECIAL NOTES:
We recommend replacement of the shear pin if it has signs of wear or there is play between the shear pin and link arm.

  • #1 1502-04 Set Screw
  • #2 4017-01 Spring
  • #3 0884-04 Steel Ball
  • #4 4030-01 Pointer
  • #5 4016-01 Brass Knob with Pin
  • #6 0338-57 O-Ring ( Knob to Base Valve)
  • #7 4033-01 Base Valve Dirt ( Needle, Seat, O-Ring)
  • #7 4033-01 Base Valve Road ( Needle, Seat, O-Ring)
  • #8 0338-14 O-Ring ( Needle to Base Valve )
  • #9 4001-01 Top housing Cover ( Bare - Off-Road)
  • #9 4001-01 Top housing Cover ( Bare - Road Bike)
  • #10 0382-04 Screw ( Countersunk Head )
  • #11 1046-10 Screw (Cap Head )
  • #12 4006-01 Retainer Pin for SWeep Controls
  • #13 0338-58 O-Ring for Sweep Controls
  • #14 4035-01 Sweep Control Assembly ( Off-Road)
  • #14 4035-02 Sweep Control Assembly ( Dirt )
  • #15 1027-02 Main Seals - sold as a pair
  • #16 4028-01 Main Wing Assembly
  • #17 0338-55 O-Ring ( Top Cap to Body )
  • #18 4009-01 Shear Pin
  • #19 4002-01 main Body
  • #20 0338-56 O-Ring ( Bottom Bleed Hole )
  • #21 0382-05 Screw ( Bottom Bleed Hole )
  • #22 4010-01 Nut
  • #23 4024-01 Black Cap ( for High Speed Valve )
  • #24 0338-59 O-Ring for High Speed Valve
  • #25 4005-01 High Speed Valve ( no outer housing )
  • #26 4005-02 High Speed Valve Assembly ( Complete )
SKU SCO-PART-4009-01
Brand Scotts Performance Products
Unit Of Measure 1
