Scotts Complete Kit Rubber Sub Mount DS-SUB-3529-01R

• KTM 690 2019-2024
• Husqvarna 701 2017-2024
• Gas Gas ES700 2022-2024

BRP Rubber Mounted SUB Mount

Minus 5mm Cut Link Arm Included in this kit

The The BRP Rubber Mounted SUB “Scotts Under Bar”  Adapter uses (8) Poly-Urethane bushings to isolate vibration and reduce rider fatigue by softening the harsh spike of hitting square edge rocks and obstacles. NOW available with two different durometer bushings to fine tune the amount of vibration dampening.

BRP RUBBER MOUNTED DM-SUB KIT INCLUDES:
1) BRP Rubber Mounted SUB Adapter
2) Sets of Rubber Bushings -(Red = Medium and Blue = Soft.)
4) Aluminum Cones & All Necessary Hardware
1) Scotts Frame Bracket
1) Scotts Steering Damper with SRP-4032-35 (Minus 5mm Cut Link Arm)

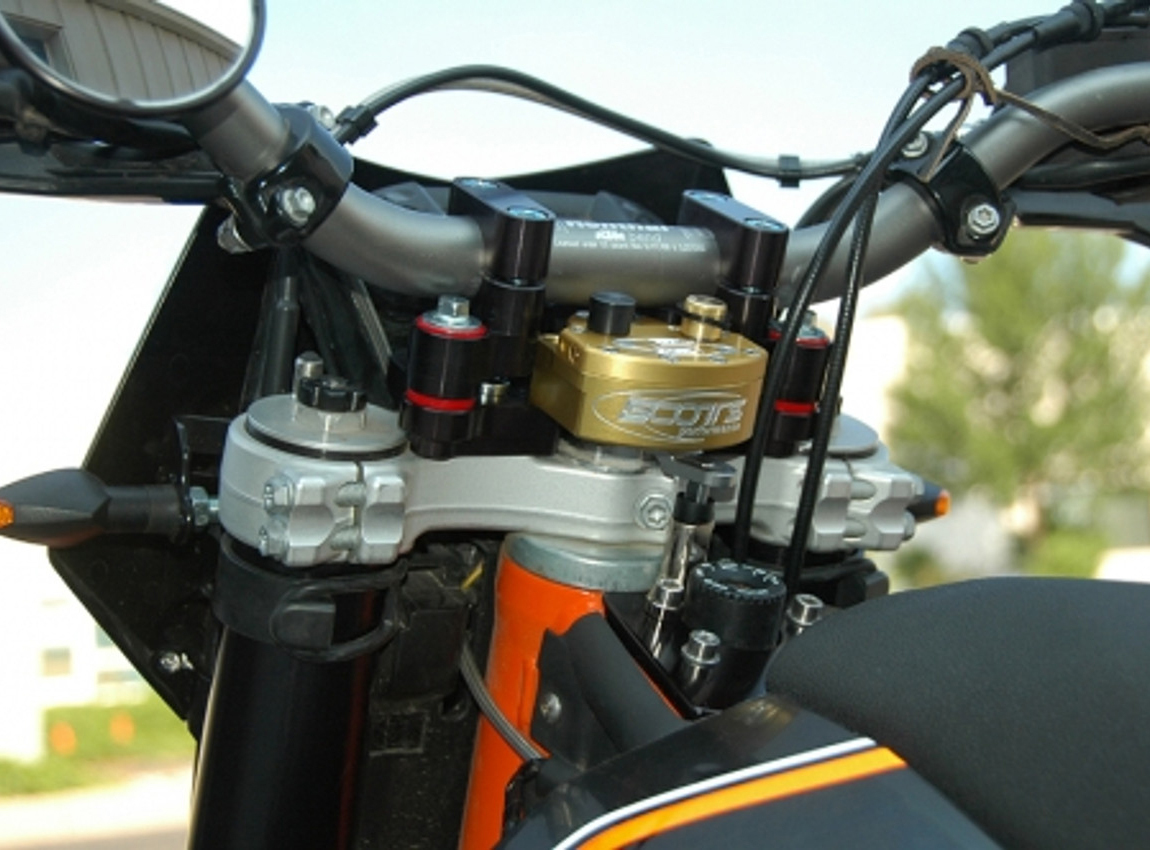

Designed to mount a Scotts stabilizer below the handlebar using your OEM cast or billet triple clamp. The BRP Rubber Mounted SUB adapter mounts to the existing rear bar mount holes and allows you to run in position 3 which is the most common and popular position. SUB Mounting a stabilizer offers several benefits over a conventional “above bar” setup and is becoming a very popular setup for GP’s, motocross, off road, dual sport applications and riders of taller stature.

• This Kit Raises the handlebars 15mm taller than stock and puts the bars at 21mm in front of the steering stem (which is the stock bar position)
• Lower Bend Bars can be used to compensate for additional height.
• SUB Mounting reduces the risk of bodily injury
• Stabilizer is tucked away and protected from potential damage from a crash.

Shock Treatment is an authorized Scotts Stabilizer Dealer and Service center with an extensive knowledge of stabilizer mounting applications. We have a complete line of stabilizer mounting applications and replacement parts. When it comes to service we offer complete service on all Scotts stabilizers.

SPECIAL NOTES:
Be sure to select the proper year, model and triple clamp in order to get the correct part for your order. When running a stabilizer in the sub mount configuration, the stabilizer link arm will need to be reverse mounted “going under the body of the unit”. To reverse the link arm we recommend using a Scotts Link Arm Puller (Sold Separately). This unit cannot be used with cycra center reach mount handguards.

"SUB" mount stands for Stabilizer Under Bars, originally designed for raising the bars. These kits are designed for use with Oversize bars. "Bar reducers" are available as an option, to convert the kit to standard diameter bars, should that be desired. This concept allows more room for other equipment such as, Global Positioning Systems(GPS) or Enduro/Rally computers and yet still retain the quick access for adjusting the stabilizer. This is also good for the taller rider who wants his bars a little higher, as it raises the bar location approximately 11-25mm, depending on the model of bike. In some cases, you might consider a lower bend handlebar bend at the same time, unless you are trying to achieve a higher bar height along with your stabilizer installation. We can also help you with other handlebar choices to match your desired setup, as we have a full selection of handlebars to choose from on this website. The SUB mounts are only available on certain models based on the physical limitations of mounting in this area. Each SUB mount comes complete with all necessary parts, hardware and "Step by Step" pictured instructions. If you have any questions, feel free to call or email us. The Photo attached here may be a generic photo to show you the basic components in the kit, but may not be showing the exact kit for your specific bike.
